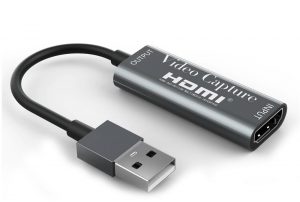

Yet another MacroSilicon based capture device. Ordered this after my original one died.

Appears to be the same chipset just in a new form factor.

This form factor is much nicer as it doesn’t take as much room at the plug so you don’t need to take up as much space or get an extension. The device also seems to run cooler though it doesn’t appear to be using the aluminum shell as a heatsink. The device in general is much smaller¬† though due to the built in wire isn’t quite as convenient to carry around.

[680228.596753] usb 1-3: new high-speed USB device number 16 using xhci_hcd
[680228.748123] usb 1-3: New USB device found, idVendor=534d, idProduct=2109, bcdDevice=21.00
[680228.748128] usb 1-3: New USB device strings: Mfr=1, Product=0, SerialNumber=0
[680228.748132] usb 1-3: Manufacturer: MACROSILICON
[680228.749768] uvcvideo: Found UVC 1.00 device <unnamed> (534d:2109)
[680228.750899] uvcvideo 1-3:1.0: Entity type for entity Processing 2 was not initialized!
[680228.750903] uvcvideo 1-3:1.0: Entity type for entity Camera 1 was not initialized!
[680228.753449] hid-generic 0003:534D:2109.0009: hiddev0,hidraw0: USB HID v1.10 Device [MACROSILICON] on usb-0000:00:14.0-3/input4

Doesn’t appear I can easily take the PCB out of the case without damage so no images of the board.
